Small Character Inkjet Marking Equipment

Upgrade to Linx CIJ Coder and Start Your Saving Now!

Linx 8900 helping to increase coding efficiency

  • Self-servicing with the Easi-Change® Service Module. Up to 2-years between module changes.
  • No service technician required.
  • Industry leading sealed AutoFlush® printhead.
  • No cleaning in up to 3 months.
  • No printhead adjustment needed.
  • The easiest user friendly intuitive interface. 10” colour touchscreen. Simplest, most reliable coding solution.
  • Gain with Linx 8900 Series CIJ.

  • Linx 8900 is simplest error-free date and batch coding solution. Lower running cost with Linx CIJ coder.
  • Coding flexibility with Linx 8900 Series CIJ. 50 named lines settings for quick product changeovers.
  • Also Carton coding option for secondary packaging.
  • More output with minimum downtime. Optional Linx Printernet enabled remote monitoring and control.”

Testimonials

Glowcroft Contract Packaging, UK

The exceptional versatility and user-friendliness of the Linx 8910 is delivering increased efficiency and convenience for Glowcroft Contract Packing. The company is also benefiting from Linx’s Printernet service, which enables it to remotely monitor and control the Linx 8910.

Duane Porter, Operations Manager

Please watch a case study Video.

Beavertown Brewery, UK

First of all the Linx 8900 is really easy to use, keeps up with the line and meets all our needs. I really like the IP55 rating. It is an important benefit as we wash the line down after every shift. The touchscreen interface is simply laid out. It allows us to change over codes very quickly after each run.”

Tom Jones, Assistant Head Brewer and Production Manager

Please watch a case study Video.

Fourpure Brewing, UK

The Linx 8900 CIJ printer is printing three lines of code onto the base of aluminium cans. We particularly like the ease of use of the Linx 8900. Changing fluids is really simple with the printer’s cartridge system, and setup and selection of codes are equally user-friendly. We are passionate about brewing. Our packaging has to reflect our premium image and that means everything about it down to the smallest detail of the codes is about quality.”

Steve Morris, Fourpure’s Head of Packaging

Please watch a case study Video.

Coding Products of Canada Ltd

Linx 8900 Continuous Inkjet Printer

The Linx 8900 Continuous Inkjet Printer family (with 8900/8910, 8920, and 8940 models) makes operation, reliability, and efficiency easier than ever. So one can spend more time coding, and increasing output from the production line.

The Linx 8900 Continuous Inkjet Printer is a flexible coding option for both primary and secondary packaging. Because this is supported by printing up to 6 lines of text, barcodes, symbols, and numbers from 1.8mm and up to 20mm high.

Simple Operation for Faster Setup With Fewer Errors

  • The large, colour touch-screen with drag-and-drop field positioning, and simple icons, makes code creation intuitive. User can customize icons on the top screen so the most frequently used features are just one touch away.
  • Fluid refills are quick and clean. A door opens at a touch, and cartridges simply click into place. Fluid check is automatic. This feature ensures the use of the correct fluid. So no tools, no mess, no mistakes.
  • Printer service is quick and simple with the Easi-Change® Service Module. So service takes minutes with the help of step-by-step on-screen instructions. Furthermore, printer features allow the user to schedule printer service around his production runs with less downtime.

Proven Linx Reliability for Maximum Uptime

  • Linx printhead is a robust, sealed design made from stainless steel. Due to that, all the essential components of the printhead are protected at all times.
  • Printhead cleaning is only required every 3 months. Because of that – less downtime, less solvent waste.
  • Autoflush features clean printhead thoroughly at every shutdown. Due to this feature reliable operation and first-time startup is out of question, even after extended shutdowns.
    Accurate output measurement – keeping you on target.
  • The Linx 8900 Continuous Inkjet Printer can help you track your line productivity by monitoring the printer output based on your own targets, in real-time e.g. batch counts, output/hour rates. The screensaver clearly displays whether you are on or off target.

Read More

Specification

Printing Capability

  • Up to 6 lines of text, symbols, numbers, barcodes
  • Barcode, Data Matrix, and QR codes
  • Character height from 1.8mm to 8.8mm
  • Maximum print speed up to 6.25m/s for single line code, up to 4.1 m/s for two-line code, and up to 2.36m/s for three line codes
  • Carton coding option with character height up to 20mm
  • Rotated character (‘tower’) printing

Programming Features

  • WYSIWYG screen with icons, drag-and-drop field positioning, and zoom function for longer messages
  • USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers, and downloading of output and line stoppage logs
  • Message store of up to 1000
  • Real-time output measurement on screen
  • Output and line stoppage logs
  • Screen saver shows real-time on/off-target indication
  • Customisable top screen for most frequently used features

Physical Characteristics

  • 10” colour touch screen
  • Stainless steel enclosure
  • IP55 / IP65
  • Conduit options 2, 4, and 6 m
  • Weight 24kg
  • No factory air required
Coding Products of Canada Ltd

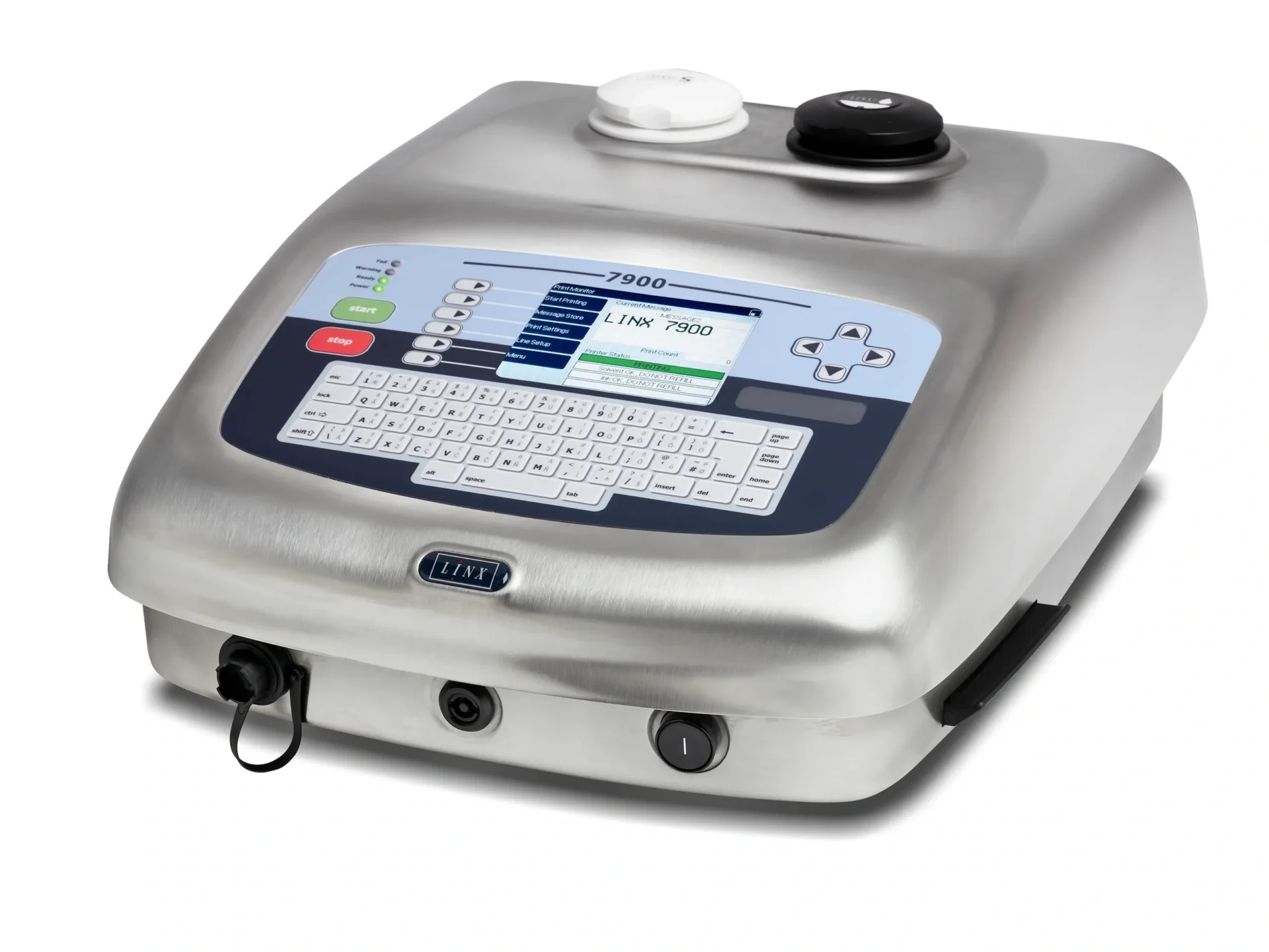

Linx 7900 Continuous Inkjet Printer

The Linx 7900 continuous inkjet printer. It comes with the lowest cost of ownership.

Available printer Configurations.

Linx 7900 Spectrum. Printer uses pigmented inks for maximum code contrast on dark or coloured surfaces. Such as rubber and plastic extrusions. IP65 standard.
Read More

Simple Printer Control

  • Remote printer monitor and control with Linx Insight.
  • Quick code changes using a barcode scanner and QuickSwitch® software.
  • Easy transfer of messages between printers. So use a standard USB port or Linx Insight.

Lowest Running Costs

  • Long service intervals of up to 9000 hours or 18 months.
  • 18-month warranty.
  • Minimal parts changed at scheduled services. No expensive ink system assemblies to replace. Therefore there are no hidden costs.

Increased Production Uptime

  • Automatic and thorough cleaning of the printhead and conduit at every shutdown. Linx’s unique FullFlush® system ensures reliable startups.
  • Fast mistake-proof refills with the SureFill® system.

Specification

Printing Capability

  • Up to 5 lines of text, graphics, logos, barcodes.
  • Maximum print speed of 8.41m/s (for a single line of code).
  • Print heights from 1.1mm to 13.8mm.
  • Data Matrix 2D codes.
  • Dynamic reverse/invert printing for traversing lines.

Programming Facilities

  • Linx Insight remote printer control and status view.
  • Simple menu-driven WYSIWYG message creation and editing.
  • QuickSwitch® message selection and editing using a barcode scanner.
  • USB port for copy and back-up of message and printer settings. Also used for transfer of messages between printers.

Physical Characteristics

  • Curved stainless steel casing with minimal dirt traps.
  • IP55 (washdown) as standard and IP65 (dustproof) as optional.
  • Weighs only 21kg.
  • No factory air required.
